About this Documentation

As such it is a work in progress and may be incomplete or incorrect in some areas. If you find anything that you feel may be incorrect or incomplete please contact Ezidebit and we will endeavour to improve this documentation and resolve any issues you may have.

eftpos-support@ezidebit.com.au

This document is intended to be used by software developers working for integrators with the responsibility of integrating this API into their application to provide the ability to manage an EFTPOS terminal.

The only endpoints currently supported are Tender and Request. Other endpoints are included so that you can become familiar with the final state of the API but they are not be used until we announce they are available.

Introduction

Welcome to the Ezidebit EFTPOS API.

The Ezidebit EFTPOS API is an easy to use API that allows you to integrate EFTPOS functionality directly into your application.

Enabling your users to:

1. Process transactions at the POS
2. Increase accuracy at the POS
3. Increase the speed and throughput of your POS transactions
4. Remove the need to rekey sales on the terminal
5. Improve reconciliation
6. Consolidate settlements with other Ezidebit payment channels

The Ezidebit EFTPOS API is an asynchronous API as a PinPad transaction may span several seconds and potentially more than one minute (a consumer may take some time to find and present a card). This means that there is both a request process (with an immediate response) and a separate response (via webhooks) to report the result of a request or progress during a request.

Your integration should expect to receive responses at any time and process them as required. The default method for returning responses to your application is HTTPS Webhooks. See Responses for more information.

Getting Started

Don’t have a Developer Account? .. get started now

Ezidebit EFTPOS API endpoints are hosted at the following base URL’s, you should use the Sandbox environment while developing and testing and the Production environment when your customers are using EFTPOS with a production terminal.

For example, the tender API’s full endpoint in production is:

https://eftpos.ezidebit.com.au/api/tender

All requests should be passed with the header:

Content-Type: application/json

otherwise, HTTP 415 error code will be returned. We currently only support JSON, other formats may be supported in the future.

To be able to connect to the EFTPOS platform you will need to provide some information to identify the business and the terminal that is being integrated.

Each terminal will have its own unique Terminal ID (TID) that will identify each individual terminal that is to be integrated.

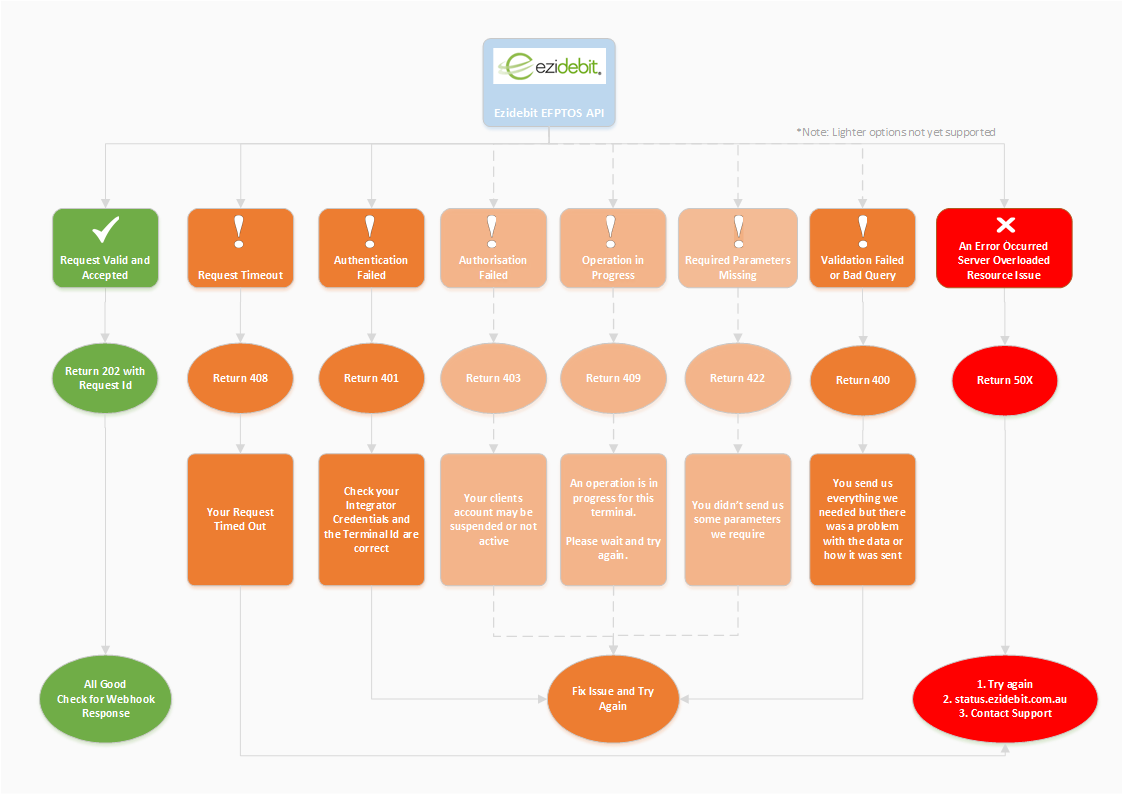

The following diagram shows a high-level overview of the API Request Process and some error conditions that may occur.

Security

To ensure the security of your payment data the API can only be called over HTTPS and will only support TLS 1.2 or greater so if your client does not support TLS 1.2 you will need to upgrade your browser or client.

We recommend that you apply some security measures when you process our response webhooks to ensure they are legitimate responses from Ezidebit. See Webhook Security.

IP-Based Access Control

The Ezidebit API will apply access control to all requests where the credentials used (Integrator API Key and TerminalId) are used from more than 1 IP address and access is interleaved (accessed from one IP .. then another .. and then back to the original IP).

To accommodate for the ability for the IP to change the process will work as follows:

1. We will record the IP associated with each request against the API Key and Terminal Id used.
2. If a different IP is received for a credentials pair the request will be allowed.
3. If the original IP is received again then further requests with different IP’s to the original will be blocked and you will be notified of the issue.

The block will be removed after 1 hour and if the situation occurs again it will again be blocked for 1 hour. Ezidebit support will also be able to remove the block if required.

Authentication

To access the Ezidebit EFTPOS API you will need an API key which you can get by registering on our Developer Portal.

Once you have your API key you will need to include it in all calls you make to the EFTPOS API in an Authorization header.

The API uses Basic Authentication where you pass your api_key as the username and there is no password.

Please consult the documentation on your http client on how best to implement basic authentication.

Handling Responses

See the Responses section for more information.

We support Webhooks or Polling for getting responses to asynchronous API calls. Webhooks are our preferred option but if your environment does not support this then you can poll for responses using the Request endpoint.

Testing

Before your integration can be certified and released you should test your integration in the Sandbox environment with our Virtual Terminal.

Virtual Terminal

A virtual terminal allows you to test your integration without the need for a physical terminal to connect to. This allows you to get started with your integration immediately. You can complete most of your integration against a virtual terminal.

When you create your account we will automatically create credentials for you to use your virtual terminal.

When working with a virtual terminal your transactions will settle through the sandbox backend.

To use the virtual terminals send your virtual credentials to the API.

Certification

Before you can use your integration for live transactions it will have to be certified by Ezidebit. Once you have developed and tested your application please contact integrations to book in your certification.

The certification process will take a few weeks.

Versions

All calls to the API are against the latest version by default.

If you would like to specify a particular version of the API then please provide a version header to select the version of the API you would like to use.

Api-version: <VERSION>

You can also set your default version in your developer portal and this version will be used for all calls you make.

RequestId

Every request will be assigned a unique Request Id and will be returned in a response header.

Ezidebit-RequestId: <RequestId>

The RequestId is generated and returned on every request you make to the API (including requests that generate errors).

This RequestId will be returned in every response for the request and can be used at any time to query the status of a request and retrieve every response that occurred that originated from that request.

Response Idempotency

We will endeavour to deliver each webhook response once only (once you acknowledge it). If you would like to ensure your event processing is fully idempotent you can also manage a list of processed events and ensure you do not processed already logged events.

Transaction Control

The Ezidebit API automatically manages contention for a payment terminal for you and will apply restrictions on access for long running requests. Most operations are atomic and if they are accepted by the API (202) then they are processed without locking access to the terminal.

Ezidebit uses 2 different timeout periods to help you manage transactions, these are:

Timeouts are reset on each interaction, so a transaction that includes multiple steps may not timeout even if the total time runs longer than the default timeout.

Each endpoint provides the following Transaction Control. When access is blocked no other requests will be processed until the transaction completes, is canceled or times out.

When a transaction times out it will be cleared. If you call an endpoint while a transaction is in progress you will receive a 409 Conflict response.

Pair

Pair with PinPad.

Initiates trust relationshiop between Api and a PinPad.

Below is an example of how a typical pairing would flow. This transaction involves a pairing initiated from a client or Browser and response to be sent back synchronously. User needs to verify the match on the Response code and on the pinpad (By clicking Yes/No), and if so then pairing is successful. PinPad must be in a pairing state in order to accept pairing requests.

HTTP Request

GET https://eftpos.ezidebit.com.au/api/pair/terminal_id

HTTP PARAMETERS

A pair request will return one of the following status codes.

Result Body

Key rolling.

Periodically every 7 days from the last key exchange the PinPad will request a key rolling, which updates security keys on both PinPad and in EFTPOS API. PinPad will initiate 3 attempts to complete this. Key rolling is handled by EFTPOS API and will be done automatically. In the unlikely event of unsuccessful Key rolling within 3 attempts, the keys will be removed from the PinPad and Pairing process will have to be repeated.

Status

Get the status of the PinPad.

The status will automatically be returned when you first connect but you can get the status at any time by calling this endpoint.

The status endpoint will return detailed information on the status and configuration of:

REQUEST

GET https://eftpos.ezidebit.com.au/api/status

HTTP PARAMETERS

RESPONSE

This endpoint is asynchronous please check for a webhook response.

Webhook Response

StatusResponse

Tender

Tender an amount (Sale).

Start a sale on the PinPad for a specified amount.

Note: does not currently support cash out this will be added in a future update to the API.*

# With shell, you can just pass the correct header with each request
curl "https://eftpos.ezidebit.com.au/api/tender"
  -H "Authorization: <API KEY>"
{
  "TerminalId":"EZI-EFTPOC-003",
  "Command":"TenderResponse",
  "ResponseBody":{
    "Data":"",
    "Success":true,
    "ErrorMessage":"OK"
  }
}

import requests

# tender $20.00 on the PinPad

tender_body = {
  "terminal_id": "EZI100233",
  "amount": "2000"
}

requests.post("https://eftpos.ezidebit.com.au/api/tender", body=tender_body, headers={"Authorization": "<API KEY>"})
{
  "TerminalId":"EZI-EFTPOC-003",
  "Command":"TenderResponse",
  "ResponseBody":{
    "Data":"",
    "Success":true,
    "ErrorMessage":"OK"
  }
}

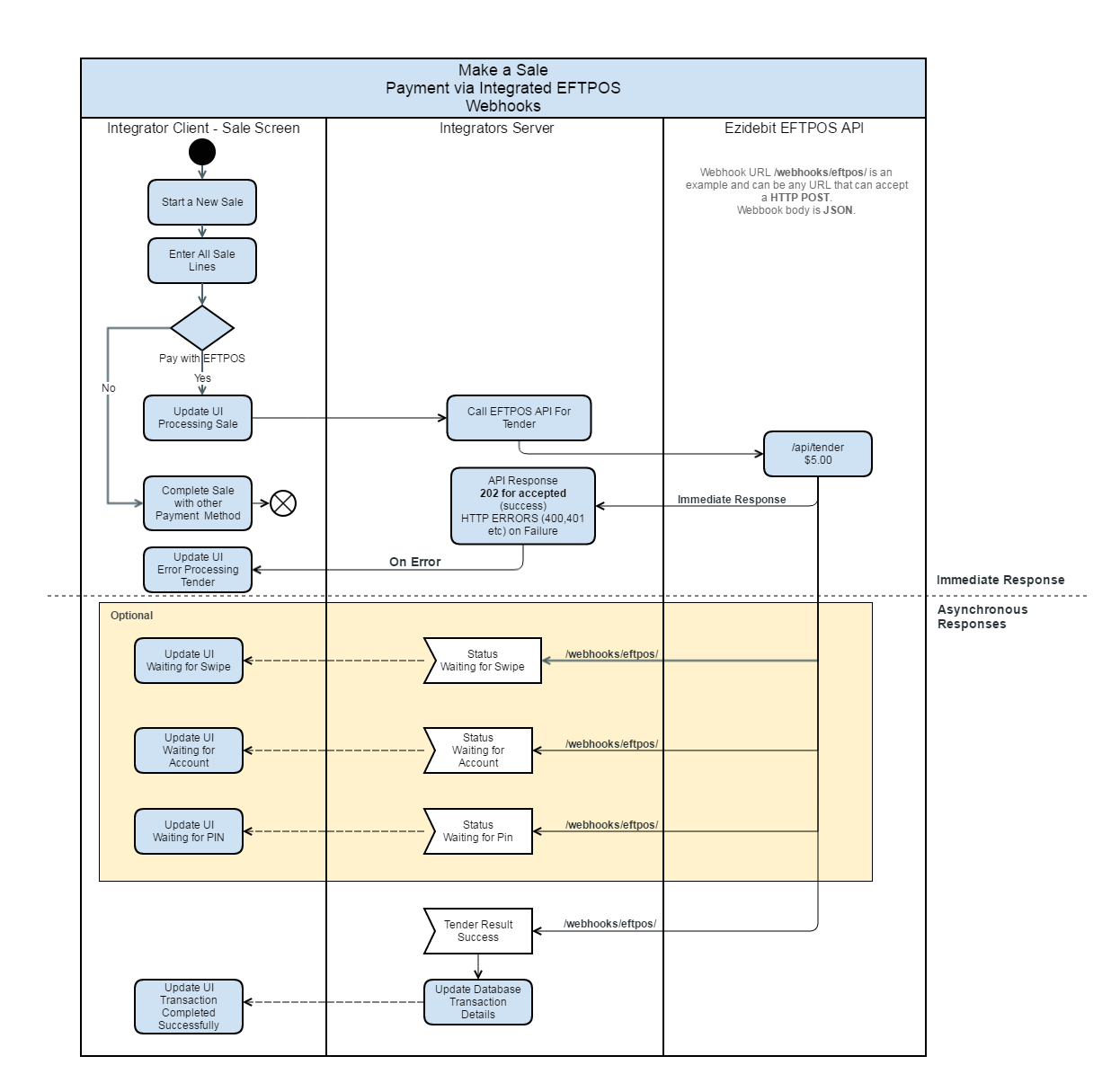

Below is an example of how a typical tender transaction would flow. This transaction involves a sale initiated from a client, causing the API to be called from the server and webhook responses to be handled via the server.

HTTP Request

POST https://eftpos.ezidebit.com.au/api/tender

POST Body

A tender request will return one of the following status codes.

Result Body

Webhook Response

The tender request may result in more than one response as Status Responses are generated throughout the Tender process. You will always receive one TenderResponse at the end of each tender.

TenderResponse

Refund an amount.

Start a refund transaction on the PinPad for a specified amount.

HTTP POST

POST https://eftpos.ezidebit.com.au/api/tender

POST Body

Void the previous Transaction

Voiding a transaction will remove it from t

HTTP POST

POST https://eftpos.ezidebit.com.au/api/tender

HTTP Body

Cancel

Cancel the current transaction on the PinPad.

If you need to cancel the current transaction on the Pinpad you can call this endpoint. If the transaction is currently in a state that can be canceled the transaction will be canceled.

If the transaction cannot be canceled then you will need to either void or cancel the transaction once it completes.

HTTP Post

POST https://eftpos.ezidebit.com.au/api/cancel

POST Body

Print

Print on the PinPad printer

Initiate a print process if the device supports printing (integrated receipt). If the device does not support integrated receipt it might return a status indicating the POS should handle printing with relevant details on the current tender.

HTTP POST

POST https://eftpos.ezidebit.com.au/api/print

HTTP Body

Manual

Initiate a manual transaction.

If the card will not work (swipe,tap,chip) then this tells the PinPad to allow the number to be manually entered at the request of the POS operator.

This may not be required for all terminals but this will be needed for terminals that lock down the ability to start a manual transaction at any time unless requested via software.

HTTP Post

POST https://eftpos.ezidebit.com.au/api/manual

HTTP Body

Settle

Settle a session on the PinPad.

This instructs the PinPad to settle the session at the current time and print a statement showing activity for this period.

HTTP Post

POST https://eftpos.ezidebit.com.au/api/settle

POST Body

Respond

Respond to a request from the API

Whenever the API sends you a PromptResponse we will expect a Response from you to indicate that you have received the response and how you have actioned the request.

For example, we may ask you to provide some information as part of the transaction. If you do not have that information you might have to prompt your user for the information and then pass it onto us.

You can respond by calling this endpoint with the content of your response and the associated response id.

Some responses will be mandatory.

See Prompt Response for information on how you will receive a PromptRequest webhook.

HTTP Post

POST https://eftpos.ezidebit.com.au/api/respond

POST Body

Request

The request endpoint will allow you to retrieve information on requests that are being processed or have been processed. This allows you to determine the status of a request at any time and to generate data to show your usage of the API over time.

Every request to the Ezidebit API will return a unique RequestId (even failure), this can be passed to this API to retrieve the history for that request.

Retrieve information on a request

HTTP Get

GET https://eftpos.ezidebit.com.au/api/request/<request_id>

Result Body

Retrieve information on transactions over a time period

HTTP Get

GET https://eftpos.ezidebit.com.au/api/request

Only requests associated with the current TerminalId will be returned.

Get Parameters

Result Body

Responses

The Ezidebit EFTPOS API is different to most API’s as it is Asynchronous and you will submit a request and then receive a response on a different channel for many requests. This is because of the length of time some operations may take,often up to one minute, which makes it impracticle to wait for a response.

It is also possible you will receive multiple responses for each request, this will be the case when we send you status updates on the request while it is in progress. You should process all responses but you may decide that some are not necessary for your application and you can ignore them.

Ezidebit EFTPOS currently supports Webhooks and Polling for our response channel but we may develop other channels in the future such as websockets to fit particular cases.

Our preferred option is to receive responses via webhooks, the polling option should only be used when absolutely neccessary.

Webhooks

All responses will be in the form of webhooks which will be posted to the webhook address you supplied.

You should ensure your server is able to receive POST requests on the address you supplied in a timely manner.

It is up to you to decide how you will respond to each webhook and also whether you intend to handle then at all (if you don’t remember to return the appropriate status code).

Webhook Delivery

Responses will be sent until they are successfully received or they timeout. As a typical EFTPOS transaction is short our timeouts will also be short.

To acknowledge a webhook please:

• return 200 when you have successfully processed a response
• return 418 when you do not intend to manage the response (this stops us from retrying)

If you do not respond then we will retry sending the webhook for up to 5 minutes.

Webhook Security

When you receive a response from the eizdebit EFTPOS API you should be checking to ensure these responses are coming from Ezidebit.

You can do this in 2 ways:

1. Whitelist requests from Ezidebit IP’s.
2. Setup a secret token and validate it on each request.

Whitelisting Ezidebit

When a request comes in you can check the request to determine the IP address of the requestor and only allow the message to be processed if it is on the whitelist.

The whitelist can be found by calling the config endpoint.

Setting your secret token

PROCESS TBA.

Something like defining a secret key on the Ezidebit Developer Portal and then setting this key on the integrators server so they can compare this value in each request .. key sent as some sort of header …

Note: Please use a random string with a high degree of entropy for the secret key.

Note: Don’t store this secret in an insecure location (including your source code), anyone with this secret can effectively send fake data posing as Ezidebit.

Rate Limiting Replies

One way your infrastructure can be attacked is via a Denial of Service (DOS) attack and the endpoint you provide to handle webhooks can also be attacked. You should apply your rate limiting policy to your webhook endpoints as well and if you are not rate limiting you should consider rate limiting your endpoints.

Please allow for a reasonable number of connections.

Polling

For integrators who cannot support webhooks we support (but do not recommend) polling via the Request endpoint. Each request will return a RequestId and this can be used to determine the status of that request.

When polling you should immediately enter a loop after making the initial request and then check for status often enough to be able to provide a responsive experience to the user. We recommend polling every 500ms, this can be lower but we will only support 200ms and above.

Remember to handle the case where a response is not provided and include appropriate timeouts. When using timeouts remember to reset the timeout after each response that is not a tender response (eg. a status response).

If a request has not generated any responses yet you will receive a 404 error for the request_id. If you receive an 404 error you should continue to poll until you reach the point you have decided to timeout the operation.

Response Structure

Each webhook response will contain different information but each response will contain some common information that you can use to help you decide on how best to process a response.

Common response elements are:

In addition to the common response elements, there will be a specific set of responses for each response type listed below.

Response Types

You can expect to receive webhooks with these response types, you can decide which are appropriate for your application and process only those.

Tender & Refund Response Data

A tender response will include the following additional fields.

Response_Request

Timeout Response Data

A timeout response returns little additional data other than responding with the timeout period that was enforced. The general status code will indicate the timeout.

Configuration

To be able to identify your terminal to the EFTPOS architecture you will need to provide some identifying information on some or all calls. This information will have to be configured in your application so that it is available when you make a call to the API.

You should decide the best solution for your application.

You need to store the following information for each terminal at a location and know which terminal is associated with which client.

Store in configuration

You can store the values in a configuration file where they cannot be modified and can be set on install or during an update.

This makes it harder for users and technicians to make changes but your users are less likely to change a setting they shouldn’t.

Have a configuration screen

If you add a configuration screen then users and technicians can easily set and update the configuration data. If you do have a configuration screen we recommend that you lock it down so that it can only be accessed with a password as changing these settings may make your EFTPOS integration inoperable.

Data

Date Formats

All dates in the API will be strings formatted to the RFC3339 or ISO8601 specification.

JSON

All data will be exchanged as JSON data. XML and other formats are not supported.

Troubleshooting

If you are having problems accessing the API then we recommend the following tools to troubleshoot your usage of the API.
